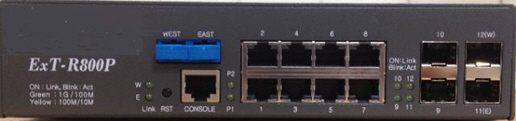

Model : R2012MC Switch (CWDM)
1. Summary
The R2012MB 1 core ring optical switch offers 8 Ethernet 10/100/1000TX ports, and four SFP / mini-GBIC
The R2012MB Switch is a useful product where the network of computers, automation, intelligent traffic systems,
semiconductors and heavy plant equipment, ships.
When the equipment failure does not affect to the next node.
When the equipment failure does not affect to the next node.
2. Standard
| Parameter | R2012MC |
|---|---|
| Standard | IEEE802.3/3u/3ab/3z 10Base-T/100Base-TX/1000Base-T IEEE802.1d/w spanning tree protocol IEEE802.1Q VLAN IEEE802.3ad Link aggregation |
| Copper Ports | 8 10/100/1000Base-T RJ45Ports |
| SFP/mini-GBIC ports | 4 1000Base-Sx/Lx (외장) 1 1000Base-Sx/Lx (내장) 2.5G (Option) |
| LED | Power1, Power2,Link/Active per port |
| Switch Fabric | 34Gbps |
| Address Table | 8K entries |
| Topology | Ring ,BUS, ETC |
| Layer 2 | Management interface : RS232 console, Web browser, SNMP v1, v2 VLAN: 4K, IGMP snooping Spanning Tree : IEEE802.1D, IEEE802.1w |
| Dimension (W*D*H) | 210*200*52 with Top Heat sink |
| Power Input Voltage | 100-240VAC,50/60Hz dual Power (Option) |
| Operating Environment | Temperature : -40-80 Humidity : 5-90% |
| Storage Environment | Temperature : -45-85°C Humidity : 5-90% (Non-condensing) |

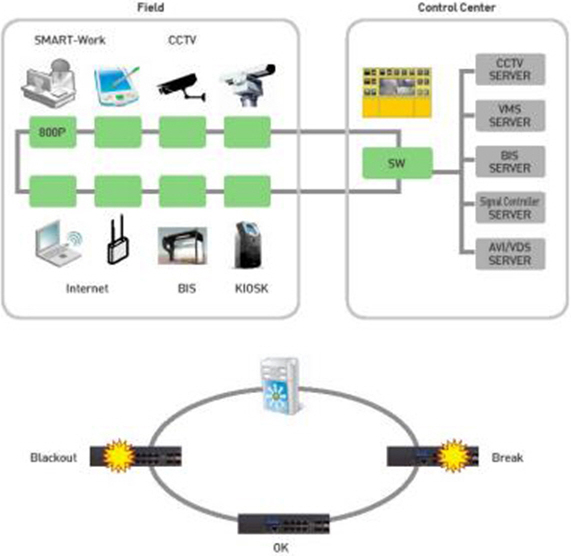

3. Topology
