Model : HM-V-NMS
1. Summary
T-NMS is based on All-IP, a construct with total monitoring solution which connects to the base station, tunnel repeater, Bi-Directional Amplifier(BDA) and Line Detector(LD). It allows an administrator to be able to monitor the system in a remote site and respond quickly. As a result, the system’s efficiency is maximized.
2. Features & Functions

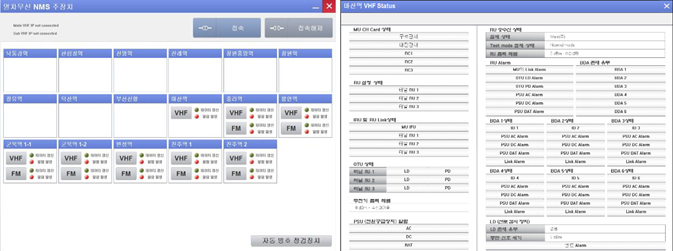

- -The GUI Environment is easy for users to recognize
- -Several NMS console connection for 1 T-NMS main device (1:N composition)
- -Easy to expand system by designed for 19” standard Rack type
- -Provides multiple connections such as Train-radio VHF equipment, FM equipment
- -Functions protected from train accidents
3. Appearance
4. Standard
| Parameter | Standard |
|---|---|
| Main Board | ATX Board |
| Processor | Intel Xeon E5506 |
| Main Memory | DDR3 ECC 4GB |
| Graphic | Onboard VGA |
| Ethernet | 1000BASE-T, RJ45 output |
| HDD | SATAll 1TB HDD Disk x 2EA (Raid Level : Mirror) |
| ODD | DVD-Multi (SATA) |
| PSU | PSU : PS/2 800W |
| DIM | 19”4U Rack-Mount Chassis |
| OS | Windows Svr Std 2008 |
*The above values of the parameters can be subject to change for the purpose of device improvement.
