Battery Energy Storage System(BESS)
Battery Energy Storage System(BESS)

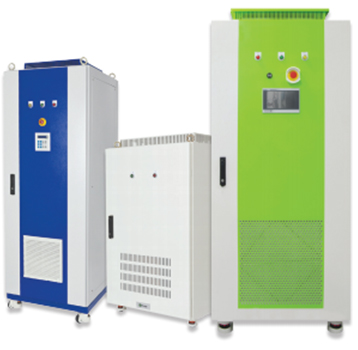

G-Bank Series
Features
- -Interlock with generating plant of new & renewable energy
- -PFC Function makes use of APF(Active Power Filter)
- -Find the total of electric charges in real time
- -Replacement of a emergency generator and a UPS
- -Stability of Grid
- -Charge/Discharge Management through HMI S/W
- -Remote control & monitoring(Optional)
- -Provide wide interface for EMS & BMS
Specifications
| GB-PS025 | GB-PS050 | GB-PS100 | GB-PS160 | ||
|---|---|---|---|---|---|
| Nominal Power [kW] | 25 | 50 | 100 | 160 | |
| OutputPower | Max. Power [kW] | 28 | 55 | 110 | 165 |
| Nominal Power[kW] | 18 ~ 25 | 33 ~ 50 | 75 ~ 100 | 120 ~ 160 | |
| Round Efficiency*[%] | 91 | 92 | 93 | 93 | |
| AC Input | Voltage / Frequency | 3Ø, AC 380V, 50Hz / 60Hz | |||
| ACOutput | Voltage / Frequency | 3Ø, AC 380V, 50Hz / 60Hz | |||
| Wave Form | True Sine Wave | ||||
| THD [%] | < 5 | ||||
| Voltage Range forStorage | DC 550V ~ DC 800V | ||||
| Continuous ChargePower [kW] | 30 | 55 | 120 | 180 | |
| Peak Charge Power[kW], @<10s | 45 | 72 | 150 | 250 | |
| Continuous DischargePower [kW] | 30 | 55 | 120 | 180 | |
| Peak Discharge Power[kW], @<10s | 33 | 60 | 132 | 200 | |
| Grid Function | Back-up, Peak Time Control,Peak Shaving, Selling | ||||
| Communications | LAN, RS-232, RS-485/422,CAN | ||||
| Operating Temp. /Humidity | 0℃ ~ 45℃ | ||||
| Dimension[mm] | 700 x 780 x 1750 | 1500 x 780 x 1750 | 2300 x 780 x 1750 | ||
PCS+Battery integral, residential/small commercial
| GB-ES030-033/048/073 | GB-ES045-048/073/097 | GB-ES060-073/145 | GB-ES100-145/218 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Power [kW] | 3.0 | 4.5 | 6.0 | 10 | ||||||||
| Nominal Capacity[kWh] | 3.3 | 4.8 | 7.3 | 4.8 | 7.3 | 9.7 | 7.3 | 14.5 | 14.5 | 21.8 | ||
| OutputPower | Max.[kW] | 3.3 | 4.8 | 6.5 | 12 | |||||||
| Nominal[kW] | 1.5 ~ 3.0 | 3.0 ~ 4.5 | 4.5 ~ 6.0 | 8 ~ 10 | ||||||||
| PCS | Round Efficiency* [%] | 87.0 | 88.0 | 88.0 | 90 | |||||||
| AC Input | Voltage | AC 110V / AC 220V | ||||||||||
| Frequency | 50Hz / 60Hz | |||||||||||
| AC Output | Voltage | AC 110V / AC 220V | ||||||||||
| Frequency | 50Hz / 60Hz | |||||||||||
| Wave Form | True Sine Wave | |||||||||||
| THD [%] | < 5 | |||||||||||
| Grid Function | Back-up, Peak Time Control, Peak Shaving, Selling | |||||||||||
| Communications | LAN, RS-232, RS-485/422, CAN | |||||||||||
| Battery System | Maximum Capacity [kWh] | 3.8 | 5.4 | 7.7 | 5.4 | 7.7 | 10.9 | 7.7 | 15.5 | 15.5 | 23.2 | |
| NominalVoltage/Range | 51.8V (44.8V ~ 58.8V) | |||||||||||
| Chage | Charging Voltage | 58.8V | ||||||||||
| Continuous Power | 3.0kW | 5.0kW | 6.0kW | 12.0kW | ||||||||
| Peak Power, @<10s | 4.5kW | 7.5kW | 9.0kW5 | 18.0kW | ||||||||
| Dischage | Cut-off Voltage | 44.8V | ||||||||||
| Continuous Power | 3.0kW | 5.0kW | 6.0kW | 12.0kW | ||||||||
| 4.5kW | 7.5kW | 9.0kW5 | 18.0kW | |||||||||
| Cell Type | Li-Battery | |||||||||||
| Cycle Lifecycles | 4,000 (DoD 80% @23℃) | |||||||||||
| OperatingTemperature | 0℃ ~ 45℃ | |||||||||||
| Dimension[mm] | 700x780x1000 | 700x780x1750 | 1500x780x1750 | |||||||||
