Grid-Connect / Stand alone inverter for Fuel cell
Grid-Connect / Stand alone inverter for Fuel cell HiGenC,
HiGenV Series

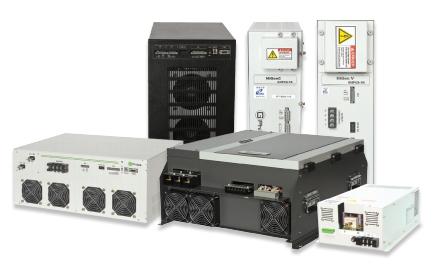

Inverter (HiGenV, HigenC Series) is electric power converter for fuel cell system applications for residential and commercial area. It is applied the latest semi-conductors and control technology to accomplish high efficiency and structural design of third dimension for compact and light to install easily.
Performance of this inverter system works efficiently more than 92.5% and controls power automatically to display maximum of generating power from fuel cell.
It supports steady operation in 220V/60Hz, single phase power.
Also, the system gives variable operation to handle parameters through RS232, RS485/422, and CAN2.0 interface
Features
- -220Vac, single phase or 380Vac, three-phase grid Connected inverter
- -Optimized algorithm for Fuel cell Stack
- -Ideal for medium and small scale fuel cell systems under 10kW
- -Wide input voltage range
- -The highest levels of efficiency in the world (92.5%)
- -A PC-Based graphical user interface and control through RS232, RS-485/422, CAN2.0
- -Product certificate (KOGAS)
Specifications
| GHPCS-1570 | GHPCS-2545 | GHPCS-5270 | GHPCS-6288 | GHPCS-67165 | GHPCS-130180 | SHPCS-3446 | ||
|---|---|---|---|---|---|---|---|---|
| GHPCS-3235 | GHPCS-62108 | GHPCS-87151 | ||||||
| I n p u t |
Rated Capacity |
1kW | 1kW | 3kW | 5kW / 6kW | 10kW / 12kW | 20kW | 1.4kW |
| Rated Power Input [W] |
1100 | 1150 / 1145 | 3300 | 5450 / 6696 | 11000 / 13200 | 23000 | 1555 | |
| Rated Voltage [Vdc] |
15.7 | 25 / 32 | 48 | 62 | 67 / 87 | 130 | 34 | |
| Input Voltage [Vdc] |
12 ~ 26 | 20 ~ 36 28 ~ 50 |
45 ~ 70 | 55 ~ 99 50 ~ 100 |
58 ~ 99 75 ~ 125 |
105 ~ 200 | 26 ~ 50 | |
| Rated Current [A] |
70 | 45 / 35 | 68 | 88 / 108 | 164 / 151 | 180 | 45.8 | |
| Maximum Current [A] |
75 | 50 / 37 | 75 | 100 / 130 | 180 / 160 | 210 | 48 | |
| Ripple Current [%] |
≦3.0 | ≦5.0 | ≦5.0 | ≦5.0 | ≦5.0 | ≦5.0 | ≦5.0 | |
| O u t p u t |
Rated Power Output [VA] |
1017 | 1010 / 1000 | 3000 | 5014 / 6006 | 10010 / 12012 | 21000 | 1400 |
| Rated Voltage [Vac] |
220±10% | 220±12% | 220±10% | 220±10% | 3Ø380±10% | 3Ø380±10% | 220 | |
| Rated Current [A] |
4.6 | 4.6 / 4.55 | 13.6 | 22.8 / 27.3 | 15.2 / 18.2 | 31.8 | 6.36 | |
| Frequency [Hz] |
60±0.2 | 60±0.2 | 60±0.2 | 60±0.2 | 60±0.2 | 60±0.2 | 50±0.2 | |
| Power Factor | ≥0.98 | |||||||
| THD [%] | ≤5(total), ≤3(each) | |||||||
| Efficiency [%] | ≧92.5 | ≧91.5 / ≧92.5 | ≧92.5 | ≧92.0 | ≧91.0 | ≧92.0 | ≧90.0 | |
| Dimensions [mm] | 372 x 270 x 122 | 375 x 274 x 120 | 558 x 418 x 220 | 645 x 700 x 310 | 750 x 650 x 1269 | 200 x 350 x 150 | ||
| Remarks | Grid Connection | Stand-Alone | ||||||
