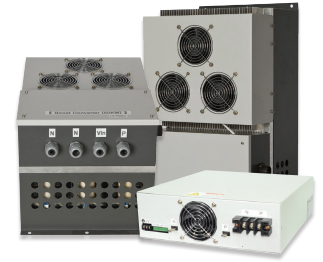

DC to DC Converter
DC/DC Converter for Fuel cell Back-up
Features
- -Current control and voltage control by DSP
- -Standard control interface through CAN bus or analog and digital signals available upon request
- -Rugged aluminum construction
- -Waterproof construction
- -Air-cooled and liquid-cooled versions available
Applications
- -Fuel cell Electric Vehicles (FCEVs)– allows fuel cell and battery/Ultra -capacitor to operate at different voltages
- -Ultra-capacitor load leveling system– allows ultra -capacitors to provide power bursts for vehicle acceleration and absorb power burst from regenerative braking
- -Ultra -capacitor solid-state pulse power system– provides high power bursts of energy without any moving parts or batteries maintenance
- -DC motor controller– provides torque from DC motor in response to accelerator pedal commands – (Modification of device shown.)
Specifications
| GF-FDC045048-019 | GF-FDC200300-500 | ||
|---|---|---|---|
| Rated voltage | 1900W | 50 kW | |
| I n p u t |
Rated voltage | DC 45.5V | DC 200V |
| Rated Current | DC 46.5A | DC 250A | |
| Allowable voltage | DC 38V ~ DC 70V | DC 180V ~ DC 370V | |
| Allowable Max. Current | DC 50A | DC 280A | |
| Operating voltage | DC 39V ~ DC 68V | DC 200V ~ DC 300V | |
| Operating current | DC 0A ~ DC 47A | DC 0A ~ DC 250A | |
| O u t p u t |
Rated voltage | DC48V | DC 300V |
| Rated Current | DC 39.6A | DC 166A | |
| Maximum Voltage | DC 55V | DC 330V | |
| Maximum Current | DC 42A | DC 170A | |
| Dimensions[mm] | 350 x 360 x 11 | 520 x 380 x 265 | |
