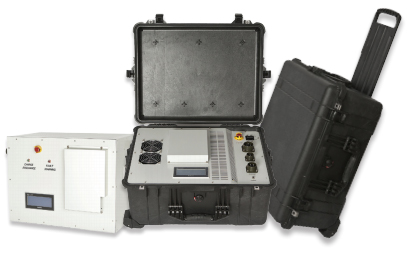

Portable Battery Charger for Li-Battery
Portable Battery Charger for Li-Battery
Features
- -Large capacity charge (Maximum rating 3.4kW), wide charging range (DC15 ~ DC60V)
- -Portable type for easy carry
- -PFC for stability of power system
- -A Variety of models for each countries(AC 110V, AC 220V, 50Hz/60Hz)
- -Optimized control mode (CC/CV/CP Mode) and algorithm for Li-Battery
- -Possible to use a different kind of the RMBS(Master BMS)
- -Easy operation through touch screen LCD
Specifications
| BC-48/15-R-PF | BC2-48-R-PF | BC-48-R-PF | ||||
|---|---|---|---|---|---|---|
| Rated capacity [kW] | 3.4 | 3.4 | 3.4 | |||
| D C O u t p u t |
Rated Voltage [Vdc] | 48 | 15 | 48 | 48 | |
| Rated Current [A] | 60 | 130 | 50 / 60 | 50 / 60 | ||
| Charge Voltage [Vdc] | 59 | 17 | 55 / 59 | 55 / 59 | ||
| Voltage Range [Vdc] | 40 ~ 60 | 12 ~ 20 | 40 ~ 60 | 40 ~ 60 | ||
| Ripple Voltage [%] | ≦3.0 | ≦3.0 | ≦3.0 | |||
| Ripple Current [%] | ≦5.0 | ≦5.0 | ≦5.0 | |||
| Control System | CV / CC / CP | CV / CC / CP | CV / CC / CP | |||
| A C I n p u t | Rated Voltage [Vrms] | 220 | 220 | 110 | 220 | |
| Maximum Current [Arms] | 25 | 18 | 20 | 37 | 20 | |
| Current THD [%] | ≤5(total) / ≤3(each) | |||||
| Power Factor [%] | ≥ 90 | |||||
| Operation Range [Vrms] | 187 ~ 252 | 187 ~ 252 | 95 ~ 130 | 187 ~ 252 | ||
| Frequency [Hz] | 60 | 50 / 60 | 50 / 60 | |||
| Dimensions[mm] | 500 x 300 x 380 | 630 x 500 x 302 | 560 x 455 x 265 | |||
| Weight[kg] | 41 | 40 | 35 | |||
| Options | 500W Discharging Unit | |||||
| Remarks | Stationary | Portable | Portable | |||
