1. General Information
HMTM-380, remote sensor and repeater equipment to in TETRA are interlocked to, is able to transit collected data to destination server to help monitoring remote equipment where is placed at unavailable wire network
2. Performance and specialty
- -Save cost with using TRS network
- -Create stable and reliable TRS network
- -Make compatible interface via serial communication module
- -Customize light weight application

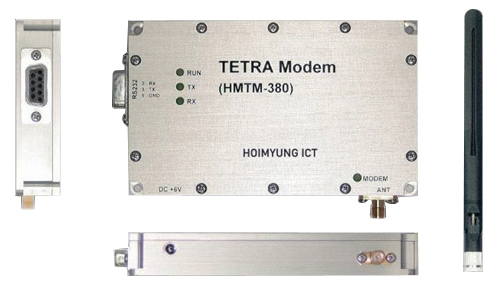

3. Image
2. 사양
| 항목 | 규격 | 비고 |
|---|---|---|
| 크기(H*W*D) | 18*101*66 mm | |
| 무게 | 300g 이하 | |
| 무게 | 13.8V max | |
| 전류 | 1.8A max / 0.2Amax | TX Mode / Idle Mode |
| 주파수범위 | 380 ~ 400MHz / 410 ~ 430MHz | |
| 주파수CH Bandwidth | 25KHz | |
| TX/RX Separation | 10MHz | |
| Wireless Data Service | Short Data (SDS) | |
| 통신 | Serial 통신(232C) | |
| Baud Rate | 38400bps | Serial통신 |
| Antenna Gain | 2dBi | |
| Antenna Direction | Omni | |
| Antenna Connector | SMA-Male | |
| Ant.Mechanical Spec. | 120*10*5(H*W*T) mm |
*이상의 기술사양은 장치 성능 향상 및 개선에 따라 예고 없이 변동될 수 있음.
