Motorola TETRA Base station

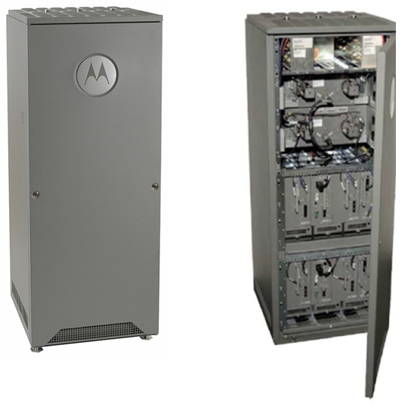

MTS 4 Equipment for Base Station

The Motorola MTS4 is the latest generation and high specification TETRA Base Station offering top performance and superb cost efficiency.

MTS 2 Equipment for Base Station

The Motorola MTS2 is mainly designed for economical cost with high efficiency in order to match medium size industry and public communication.

Section Description
L x W x H (m) 0.55 x 1.43 x 0.57 m
Power Input Power 115/230Vac, 50/60Hz, -48Vdc
Allowance Repeater(s) Max 8 units (32)
Bandwidth 380~400MHz, 410~430MHz, 806~870MHz
Base Station Output 25W
40W Combiner Base Station Output (bypass)
Base Station Sensitivity 120dBm / 113dBm
Temperature -30 ~ 60oC
RF Interval 25 KHz
Frequency 5 MHz
Transmittance Interface X 21 or Fractional E1 Connection
Prevent loop or build duplex
Multiplex E1 port 2 (Can be added max. 10 base station loop)

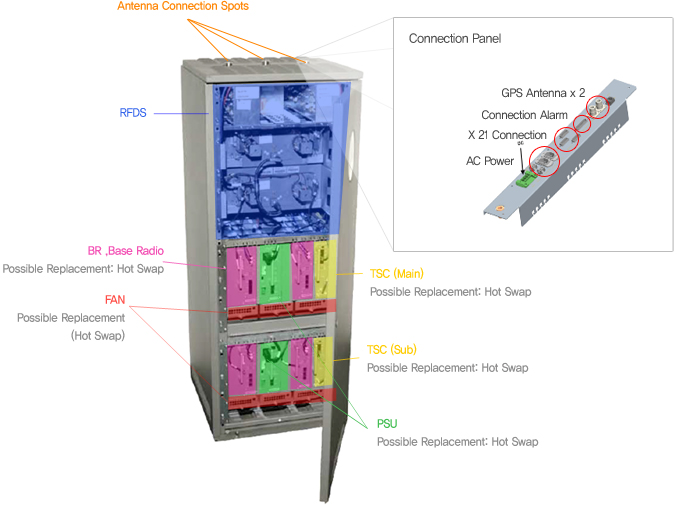

MTS 4 Composition
